Skid Steer Attachments

Also known as skid steer loaders or Bobcats, skid steers are versatile, compact, and highly maneuverable machines. They are used in almost every industry, including construction sites and farming areas. They are perfect for tasks where a wheel loader can’t fit properly and operate efficiently. Skid steers are the right choice when it comes to jobs such as landscaping with minimal damage to the surroundings, cleaning out debris from construction sites and building interiors, and more. You can also use multiple skid steer attachments to enhance the overall productivity and performance of the machine.

BROOMS

HYDRAULIC ROTARY BROOM

  • Unique lateral and forward float
  • Gauge wheels
  • Includes electric selector valve and hoses to the auxiliary outlets
  • 26” diameter wafers poly/steel
  • Angles 30 degree right and left
  • Direct motor drive on broom
  • Oil flow required 12-20 GPM
  • Reversible rotation for sweeping away from walls etc.

SIZE RANGE: 72″/ 84″

HLA Attachments

HLA PICK UP BROOM

  • Hydraulic Rotary Pick-up Broom
  • Ideal for cleaning up parking lots, construction sites, streets, curbs and gutters as well as parks and recreation areas etc.
  • Includes hydraulic hoses and flat-faced couplers 26” diameter wafers poly/steel
  • Direct motor drive on broom
  • Oil flow required 12-20 GPM
  • Oil PSI recommended 1500 – 3000

SIZE RANGE: 72″/ 84″/ 96″

HLA Attachments Prices

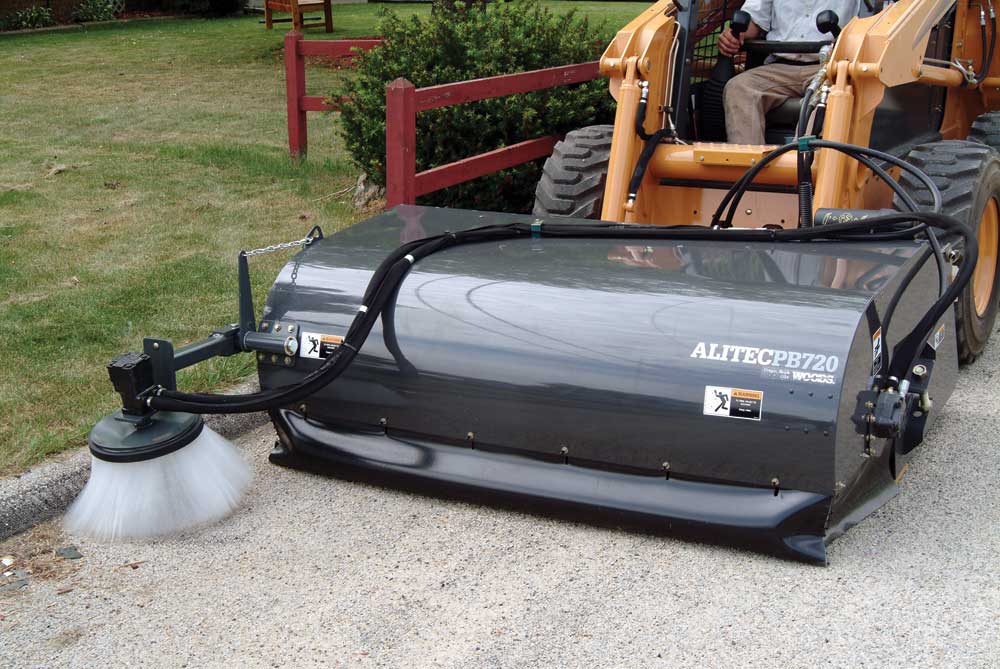

MARTATCH PICK UP BROOM

  • Ideal for cleaning up parking lots, construction sites, streets, parks and recreation areas
  • Includes hydraulic hoses and flat-faced couplers
  • 24″ diameter poly/steel bristle wafers
  • Direct motor drive on broom
  • Hydraulic requirements: 12-22 GPM
  • Front gauge wheels
  • Available in 48 – 96 inch widths

BOOM POLES



HLA BOOM POLE

  • Boom Pole Telescopic (Standard Activated)
  • 6 ft main boom with a 4 ft telescopic boom
  • 3000 lbs capacity closed / 1500 lbs capacity extended
  • Approximate weight: 370 lbs
hla skid steer attachments

BUCKETS & GRAPPLES

SKID STEER BUCKET

AVAILABLE IN REGULAR & HEAVY DUTY

  • Reinforced top lip
  • 31″ deep, 19″ high
  • Lower back and longer base enables operator to see cutting edge of bucket
  • Tapered end plates are self-cleaning and reduces material build-up
  • Note: Add 2″ to Inside Width column to calculate outside width of bucket.

SIZE RANGE: 48″/ 54″/ 60″/ 66″/ 72″/ 78″/ 84″

hla attachments for sale

BUCKET WITH DIGGING TEETH

AVAILABLE IN REGULAR & HEAVY DUTY

  • Reinforced top lip
  • 31” deep, 19” high
  • Lower back and longer base enables operator to see cutting edge of bucket
  • Tapered end plates are self-cleaning and reduces material build-up
  • NOTE: Add 2” to Inside Width column to calculate Outside Width of bucket
HLA Attachments Prices

HIGH VOLUME SNOW BUCKET

  • 3/16” material, ¼” end plates – 3/4 X 4 bevelled cutting edge
  • Reinforced top lip – 38” deep, 32” high
  • Reinforced round back and end plates for trength, easy filling & clean out
  • Flat top acts as level indicator
  • Tapered end plates are self-cleaning and reduces material build-up.
  • NOTE: Add 2” to Inside Width column to calculate outside width of bucket

SIZE RANGE: 60” / 66” / 72” / 78” / 84” / 90” / 96” / 108” / 120”

hla attachments

HIGH DUMP BUCKET

AVAILABLE IN REGUALR & HIGH VOLUME

  • High dump bucket increases dump out height by 48”
  • Exclusive flat bottom bucket design allows for easier clean out & no capacity sacrifice

REGULAR SIZE RANGE: 60” / 66” / 72” / 78” / 84” / 96”

HIGH VOLUME SIZE RANGE: 60” / 66” / 72” / 78” / 84” / 96”

hla skid steer attachments

BUCKET & REGULAR UTILITY GRAPPLE

  • Standard (Skidsteer) Bucket & Regular Utility Grapple
  • Opens up to 70”
  • Comes with cylinders

SIZE RANGE: 72” / 84” / 96”

hla attachments for sale

SCRAP GRAPPLE BUCKET

  • Two independent grapples
  • Ideal for awkward abrasive loads
  • 31” overall height
  • 34” overall depth
  • Comes with cylinders
  • NOTE: ADD 2″ TO INSIDE WIDTH OF BUCKET FOR OUTSIDE WIDTH MEASUREMENT

SIZE RANGE: 54” / 60” / 66” / 72” / 78”

HLA Attachments Prices

CONCRETE SLAB LIFTER BUCKET

  • Ideal for removing concrete on sidewalks, driveways and construction sites
  • Three heavy-duty shanks with replaceable points and rubberized flex pins
  • Optional hydraulic thumb for increased versatility
HLA Attachments Canada

HLA CONCRETE FUNNEL BUCKET

  • Reduces manual labour
  • Transports and cleans up easily
  • Hauls up to ½ yard of concrete
  • Eliminates the need for a wheelbarrow
  • Works great in tight areas
  • Attaches to most skid loaders
  • 19″ deep x 36″ long
  • 12″ x 12″ discharge opening
  • Available widths: 48, 60, 72, 78 inches
HLA Attachments Canada

STONE FORK

HLA STONE FORK

Stone Fork – Rock Bucket (Retainer Style Tine) REGULAR DUTY

  • 1-¼” shaft diameter
  • 2-½” tine spacing
  • Points are 5/8″ thick, 400 Brinell high tensile steel
  • 23″ high
  • 40″ deep
  • 5500 lbs capacity

SIZE RANGE: 55” / 62” / 70” / 77” / 84” / 92″

HLA Attachments Ontario

Landscape Rake

Reist Roto Landscape Rake

The RotoRake’s (Hyd) bi-directional rotor allows for operation in both directions. Features a 25 degree angle and 28 degree tilt for easy swaling and ditching. Oscillating gauge wheels lock in level position for the (P.T.O.) three point hitch use. Dual-motor design delivers 40% more torque and eliminates outside bearings and chains.

The RotoRake also features a floating rotor design with road-grade mini carbide teeth, ditch cutters and side shields. The RotoRake can be used on a three point hitch or skid steer hitch systems.

COLD PLANERS

COLD PLANERS

  • Manual controls attach to any skid steer
  • Top pivot design to self-level drum and chassis for higher down force and smoother cuts
  • Optional water kit for increased longevity
  • Optional step drum and stripe removal drum for added versatility

AVAILABLE IN:

  • 12-inch cutting width / Cutting depth range: 0-5 inches
  • 16-inch cutting width / Cutting depth range: 0-6 inches
  • 18-inch cutting width / Cutting depth range: 0-6 inches
  • 24-inch cutting width / Cutting depth range: 0-6 inches
  • 30-inch cutting width / Cutting depth range: 0-6 inches
  • 40-inch cutting width / Cutting depth range: 0-8 inches

Bradco Cold Planer

The Bradco® Cold Planer by Paladin is an effective tool for small milling jobs, as well as asphalt and concrete pothole and frost heave repair, curb cutting, pavement texturing and removal of lane stripes and roadway around manholes. Available width sizes: 12 to 40 inches.

  • Independent self-leveling depth adjustment plates
  • Planetary drive delivers high torque
  • High rear spoil clearance to prevent recirculation of material
  • Protective shields for hydraulic & electrical components
  • Fully adjustable with electro-hydraulic controls
  • Manual depth and tilt option available on standard flow Cold Planer ONLY
  • Convenient for milling frost heaves, expansion joints, railroad approaches, etc.

STUMP GRINDER

BAUMA LIGHT STUMP BLASTER/GRINDER

SKID STEER STUMP BLASTERS

Stump Blaster skid steer stump grinders are available in 4 models with a total of 7 hydraulic motor options to make the most of your skid steer performance. Baumalight has multiple motor options for hydraulic flows from 10–40 GPM. Use the Grind Time chart to find the right motor and stump grinder for you. All skid steer Stump Blaster units are shipped with standard skid steer quick attach, and flat-face quick couplers. Grease zerks and replaceable brass bushings are provided at each major pivot points for extended service life of your Stump Blaster. The heavy tooth population makes finer mulch and allows much smoother operation.

BaumaLight Light Industrial Attachments

PALLET FORKS

900 LB CAP. – Light Duty Pallet Fork

  • 1 3/16” x 3 1/2” x 36” or 42” Class II hook type solid fork lift tines
  • Sliding adjustable tines can be locked in any position
  • 36” or 50” wide carriage

HLA Attachments Prices

HLA MINI PALLET FORKS

  • 1,200 LB Cap. – Light Duty Pallet Fork
  • 1 3/16” x 3 1/2” x 36” or 42” Class II hook type solid fork lift tines
  • 1200 lbs capacity @ 24” L.C.
  • Sliding adjustable
  • Tines can be locked in any position
  • 50” wide carriage
HLA Attachments Canada

2,000 LB CAP. – HEAVY DUTY PALLET FORK

  • 1½” X 3 1/8” class II hook type solid fork lift tines
  • 2000 lbs capacity @ 24” L.C.
  • C/w guard
  • 50” wide carriage

FORK LENGTH / TINES: 36” / 42” / 48”

HLA Attachments

4,200 LB CAP. – HEAVY DUTY PALLET FORK

  • 1-3/8” X 4” class II hook type solid fork lift tines
  • 4200 lbs capacity @ 20” L.C.
  • C/w guard
  • 50” wide carriage
  • Sliding adjustable
  • Tines can be locked in any position
  • Available with Economy or Domestic Tines
  • OPTIONAL – Full back guard (Brick Guard)

FORK LENGTH / TINES: 42” / 48”

HLA Attachments

5,500 LB CAP. – HEAVY DUTY PALLET FORK

  • 1½” X 4” class II hook type solid fork lift tines
  • 5500 lbs capacity @24” L.C. – C/w guard – 50” wide carriage
  • Sliding adjustable – Tines can be locked in any position
  • Economy or Domestic Tines
  • OPTIONAL – full back guard option (Brick Guard)

FORK LENGTH / TINES: 42” / 48” / 54” / 60”

HLA Attachments

NM Wheel Loader Pallet Fork

Wheel Loader Forks are used in everyday, standard duty pallet applications.

These pallet forks come standard with a tine lock feature for preventing the tines from sliding side to side. Various tine lengths are available.

SALT SPREADERS

HS100 SALT SPREADER

Features

  • Hydraulic Spinners
  • Spinner Speed Control
  • Manual Flow Rate Adjustment Slider
  • Floating Agitator

Options

  • Hydraulic Shut-Off Gate
  • 36″ Sidewalk Drop Shield
  • 13″ Quick Attach Spacer Kit
  • Hopper Cover – Black Vinyl with Draw String
hla attachments snow

SNOW PUSHERS

1500 SNOW PUSHER

Features

  • Replaceable, Reversible Cutting Edge
  • Double Sidewall
  • High Tensile AR400 Adjustable Steel Skidbars

Options

  • Back Drag
  • 3 Point Hitch Rear Pull Mount
  • Snowblade Marker
  • TURF Snow Pusher Bolt-On Kit

SIZE RANGE: 54” / 60” / 66” / 72”

HLA Snow

2500 SNOW PUSHER

Features

  • Double sidewall
  • High tensile AR400 adjustable steel skidbars
  • Replaceable, reversible rubber cutting edge (non-tripping)

Options

  • 3 Point Hitch Rear Pull Mount
  • Snowblade Marker

SIZE RANGE: 72” / 84” / 96”

HLA Snow

3500 SNOW PUSHER

Features

  • Double sidewall
  • High tensile AR400 adjustable steel skidbars
  • Replaceable, Reversible Cutting Edge
  • Spring Trip Cutting Edge

Options

  • 3 Point Hitch Rear Pull Mount
  • Boron Cutting Edges
  • Snowblade Marker
  • Available in Bucket-Edge Mount

SIZE RANGE: 72″/ 84” / 96” / 105” / 108” / 120” / 144”

HLA Snow

BACK DRAG OPTIONS FOR SNOW PUSHERS

Features

  • Available for most HLA snow pushers

HLA Snow

4500 SNOW PUSHER

Features

  • 2 Year Warranty
  • Replaceable, Reversible Cutting Edge
  • High Tensile AR400 Adjustable Steel Skid bars
  • Spring Trip Cutting Edge
  • Mouldboard Height 34″

Options

  • Back Drag
  • Rubber Cutting Edge
  • High Tensile Long Wear Skid Shoes
  • Snowblade Marker

SIZE RANGE: 120” / 144” / 168″

HLA Snow

5500 SNOW PUSHER

Features

  • 2 Year Warranty
  • Replaceable, Reversible Cutting Edge
  • High Tensile AR400 Adjustable Steel Skid bars
  • Spring Trip Cutting Edge
  • Mouldboard Height 42″

Options

  • Back Drag
  • Rubber Cutting Edge
  • High Tensile Long Wear Skid Shoes
  • Snowblade Marker

SIZE RANGE: 144” / 168″ / 192″ / 216″

HLA Snow

SNOW BLADES

1000 SNOW BLADE

Features

  • Adjustable Skid Shoes
  • Lateral Float
  • Mould Board Profile
  • Replaceable, Reversible Cutting Edge
  • Spring-trip Mould Board

Options

  • Boron or Carbide Cutting Edges
  • Snowblade Marker

SIZE RANGE: 42” / 48” / 54” / 60” / 66” / 72” / 78” / 84” / 90”

HLA Snow

2000 SNOW BLADE

Features

  • Adjustable Skid Shoes
  • Crossover Relief Valve
  • Lateral Float
  • Mould Board Profile
  • Replaceable, Reversible Cutting Edge
  • Spring-trip Mould Board

Options

  • Boron or Carbide Cutting Edges
  • Snowblade Marker

SIZE RANGE: 60” / 72” / 78” / 84” / 90” / 96”

HLA Snow

3000 SNOW BLADE

Features

  • Adjustable Skid Shoes
  • Crossover Relief Valve
  • Lateral Float
  • Mould Board Profile
  • Replaceable, Reversible Cutting Edge
  • Spring Trip Cutting Edge

Options

  • Boron Cutting Edges
  • Floating Blade Hinge
  • Snowblade Marker

SIZE RANGE: 72” / 84” / 96” / 108” / 120”

HLA Snow

SNOW WING

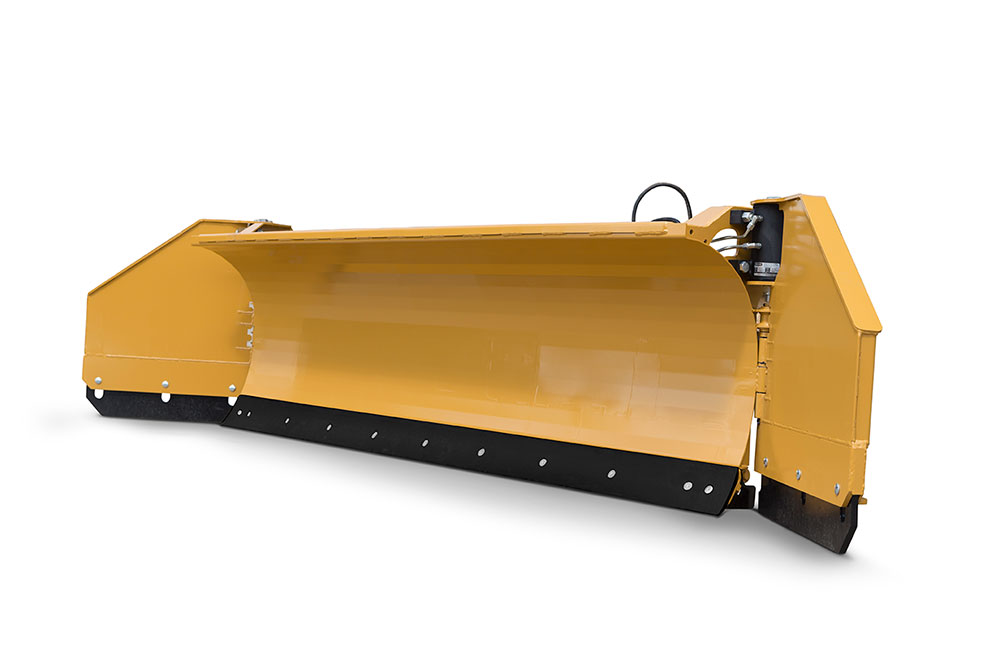

3230W SNOW WING

Features

  • 180° Rotation
  • Adjustable Skid Shoes
  • Crossover Relief Valve
  • Floating End Plate Edge
  • Lateral Float
  • Mould Board Profile
  • Replaceable, Reversible Cutting Edge
  • Rotary Actuators – PATENTED
  • Spring Trip Cutting Edge
  • Tire Protection System – PATENTED

Options

  • Boron Cutting Edges
  • Floating Blade Hinge
  • Snowblade Marker
  • Available in Bucket-Edge Mount

SIZE RANGE: 72” / 84” / 96” / 108” / 120”

Box Blade

Wifo Switchback Box Blade

The Wifo Switchback is the box blade scraper that doubles as a snow pusher.

Grading and leveling is easily done with the Switchback’s replaceable cutting edges on both the inside and outside of the box. The adjustable rippers featuring replaceable teeth prepare hard packed surfaces for smooth grading.

When the snow falls, the Switchback becomes a front mount snow pusher simply by bolting on the mount plate and removing the rippers and 3PH links.

TREE SPADE

TREE SPADE

  • Ideal for transplanting trees and shrubbery
  • Scoop made from ¼” material
  • 33″ wide
  • 48″ deep
  • Note: For skidsteers only
HLA Attachments

LOG SPLITTER

WALLENSTEIN LOG SPLITTER – WX430 SERIES SKID STEER – 25 TON SPLIT FORCE

– Vertical and Horizontal splitting: Quickly and easily switch into the vertical position to split logs too large to lift onto the splitting bed.
– Direct Pressure: Full splitting force is always applied because the cylinder is directly inline with the log, powering through the toughest wood with ease.
– Skid Steer Mount: The universal quick attach plate connects easily to most skid steers.
– Wide Wedge: Wide maul wedge spreads and pops the log in a short distance, reducing cycle time.

LOG GRAPPLE

WALLENSTEIN LOG GRAPPLE – LXG200 SERIES MINI-SKID STEER

Squeeze into tight spaces and get the job done efficiently with Wallenstein’s Mini Skid steer Log Grapple, the ideal attachment for landscapers and tree service contractors who need hauling strength through narrow passages. The LXG210SB features a spring-centered return that twists when turning corners but stays straight when grabbing logs, a tight grapple closure for small branches, and lateral or in-line grapple positioning for smooth log handling. Available for Toro Dingo, Vermeer, Ramrod, Bobcat, Boxer and Ditch Witch quick attach hook ups.

HYDRAULIC BREAKER HAMMER

DemaRock

D-Series Hydraulic Breakers

POWER, DURABILITY, SIMPLICITY, AND RELIABILITY

  • Efficient gas and oil percussion system increase hitting power and reduces demand on the carrier’s hydraulic system.
  • Shock-mounted housing reduces noise and minimizes vibration transmitted to the carrier.
  • Two moving parts and minimal components decrease maintenance costs 15 models ranging from 200 to 13,645 ft/lb impact energy class.
  • Fits most Skid steer loaders, Backhoes, mini through large Excavators.
  • Model numbers D40, D45, D53, D68, D75, D85, D100, D125, D135, D140 and more.
Arrowhead Logo DOWNLOAD BROCHURE

STRIKE FORCE BREAKERS / HYDRAULIC HAMMER

Strike Force Small Mounted Breakers are ideal for mini excavators and skid steer loaders for jobs that need a high breaking capacity. These breakers are the safe and efficient solution for road maintenance, urban demolition and building refurbishment.

Paladin Attachments DOWNLOAD BROCHURE

Features of Skid Steers

Although there are tracked versions available, skid steers are typically four-wheeled machines. They come with the following common design features:

Drive System

The drive system of Bobcat skid steers consists of two hydraulic motors, one for the right side of the equipment and one for the left side. They are connected to a sprocket using chains that also join each of the four wheels. This design allows greater wheel torque.

Lift Arms

Lift arms are designed to attach at the rear and run parallel to the equipment’s sides, allowing for either a radial or vertical lift path.

Skid Steer Manufacturers

It helps to know that most heavy equipment manufacturers produce skid steers. This includes Bobcat, JCB, Komatsu, Terex, Caterpillar, Case, New Holland, and John Deere, to name a few.

Skid Steer Attachments

Most compact track loaders or Bobcat skid steers come with standard buckets. However, you can replace them using a wide variety of skid steer attachments with a coupler system, including sweepers, pallet forks, augers, angle brooms, stone forks, stump grinders, hydraulic hammers, snow pushers, blades, wings, and more.

Our Selection of Wheels and Tires

In addition to the skid steer attachments, we also carry a wide assortment of tires and wheels, including air-filled or pneumatic tires by big brands such as Camso, Primex, and Galaxy. Made using high-grade materials, they are ideal for heavy-duty applications and designed to offer high performance.

Our Inventory of Excavator Accessories

We carry a wide range of excavator attachments and accessories and have the resources to cater to the construction industry’s needs. Our selection includes ditching and grading bucket, breaker hammer and hydraulic thumb, universal adapter, and root rake. All our products are designed to ensure longevity and are reasonably priced.

We Offer All Types of Excavator & Skid Steer Attachments

Tag Equipment is a prominent supplier of skid steer attachments and excavator accessories. We specialize in rubber tracks, tires, wheels, and high-quality attachments for all makes and models. We offer products at a fair price and carry a full range of products for Bobcat, Case, Kubota, JCB, Cat, and many more.
For more details about our skid steer attachments, contact us today or feel free to call us at 416-716-5850. We’ll be more than happy to assist you!

HUGE INVENTORY, FAST SHIPPING & PICK UP
